Home / Product / Digital Magnetic Stirrer

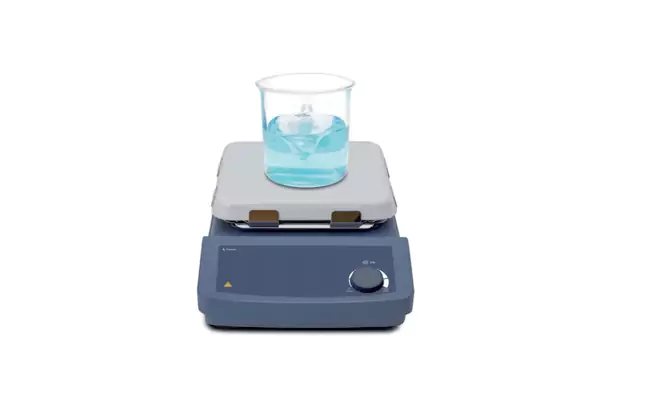

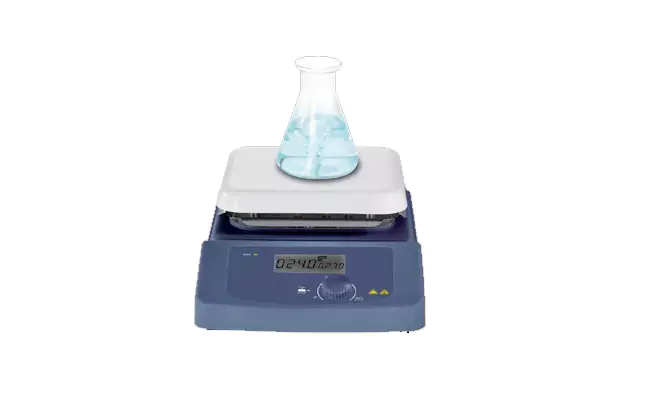

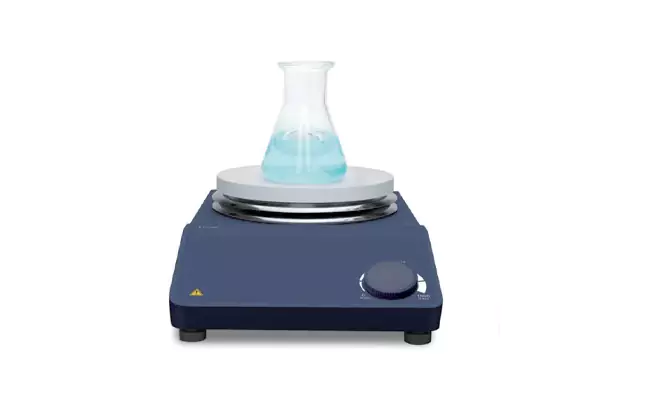

Digital Magnetic Stirrer
Digital Magnetic Stirrer
Digital Magnetic Stirrer
Prev
Next
Digital Magnetic Stirrer
Digital Magnetic Stirrer
Digital Magnetic Stirrer

Digital Magnetic Stirrer

TL MS7-S

The Digital Magnetic Stirrer provides reliable, precise, and user-friendly magnetic stirring. Its adjustable speed, timer, and durable stainless steel plate ensure consistent sample mixing for high-capacity laboratory applications.

  • DC brushless motor for stable operation, low noise and has a long service life
  • Stainless durable steel shell, thermo stability and anti-corrosion
  • Separate digital display for speed & timer

GET FREE QUOTE

Rich Categories

Comfortable Use

Safety & Accessibility

Durable Build

Details

Applications

Specification

Contact us

Details

Details

The Digital Magnetic Stirrer provides precise, timer-controlled mixing for a wide variety of laboratory applications. Its variable speed range and digital interface allow researchers to monitor and adjust stirring conditions accurately. The brushless DC motor ensures smooth, consistent rotation, reducing experimental variability and improving sample homogenization.

The 137 mm stainless steel plate is durable and corrosion-resistant, accommodating vessels up to 20 L. Laboratory personnel can perform long-duration stirring thanks to the integrated timer, which supports settings from 1 minute to 99 hours 59 minutes. The flat and stable plate surface prevents vessels from tipping during operation.

  • Variable speed control from 100–1800 rpm for precise mixing

  • Digital display shows real-time speed and elapsed time

  • Timer function supports 1 min to 99 h 59 min stirring

  • Durable 137 mm stainless steel stirring surface

  • Brushless DC motor ensures smooth, consistent rotation

  • Supports vessel volumes up to 20 L

  • Resistant to corrosion and chemical exposure

  • Compact and easy-to-clean design for laboratory convenience

  • Suitable for chemical, biological, and pharmaceutical experiments

The combination of timer control, durable materials, and high-capacity stirring makes this instrument suitable for diverse laboratory workflows. Researchers can handle routine and extended experiments efficiently with minimal supervision.

Applications

Applications

  • Routine laboratory mixing and solution preparation

  • Chemical reactions and reagent homogenization

  • Biological sample processing and buffer mixing

  • High-capacity vessel mixing up to 20 L

  • Educational, research, and industrial laboratory experiments

Specification

Specification

Specifications TL MS7-S TL MS-S TL MS6-Pro
Work plate Dimension (W × D) 184×184mm (7 inch) Φ135mm (5 inch) 140×140mm
Work plate material Glass ceramic Stainless steel cover with ceramic Aluminum cover with ceramic
Motor type Shaded pole motor Brushless DC motor Brushless DC motor
Stirring positions 1 1 1
Max. stirring quantity[H2O] 10L 20L 5L
Max.magnetic bar[length] 80mm 80mm 40mm
Speed range 0-1500rpm 0-1500rpm 200-1500rpm
Speed display Scale Scale LCD
Protection class IP21 IP21 IP21
Motor input Power 15W 18W 2.4W
Motor output Power 1.5W 10W 1.8W
Power 30W 30W 10W
Voltage, Frequency 100-120/200-240V, 50/60Hz 100-240V, 50/60Hz 100-240V, 50/60Hz
Dimension (W×D×H) 215×360×110mm 160×280×85mm 320×180×108mm
Weight 3.8kg 2.8kg 2.2kg
Permissible ambient temperature and humidity 5-40℃, 80%RH 5-40℃, 80%RH 5-40℃, 80%RH
