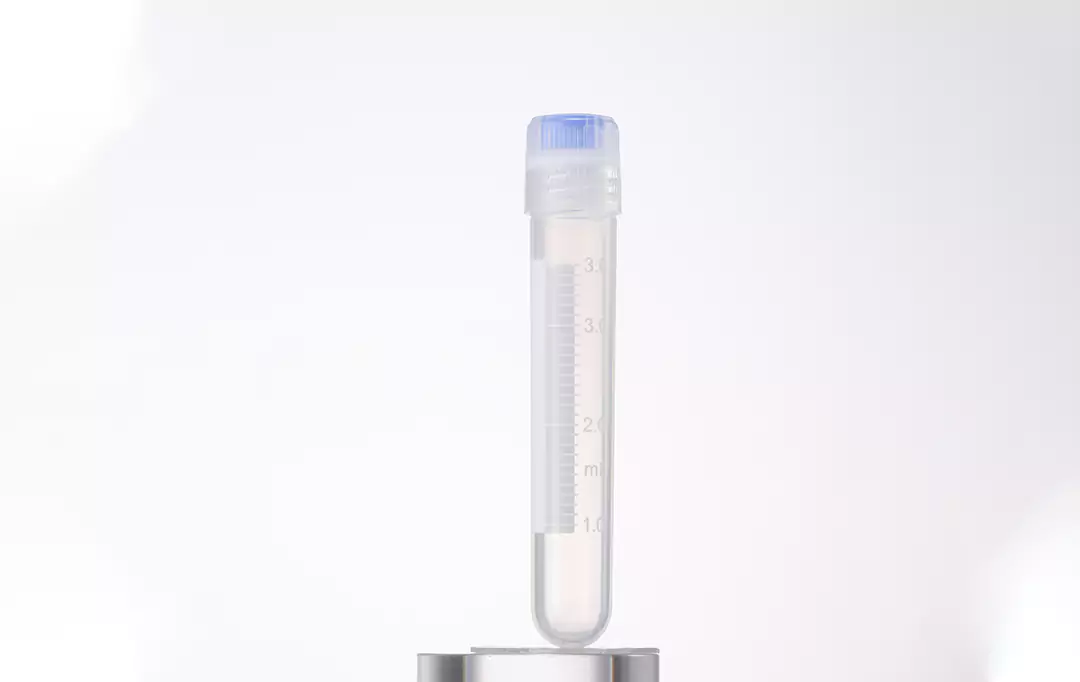

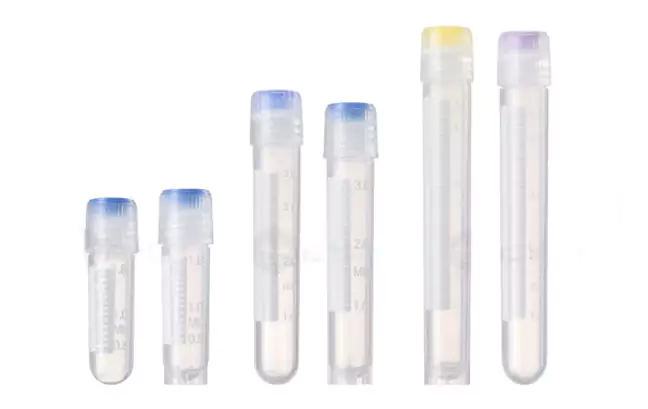

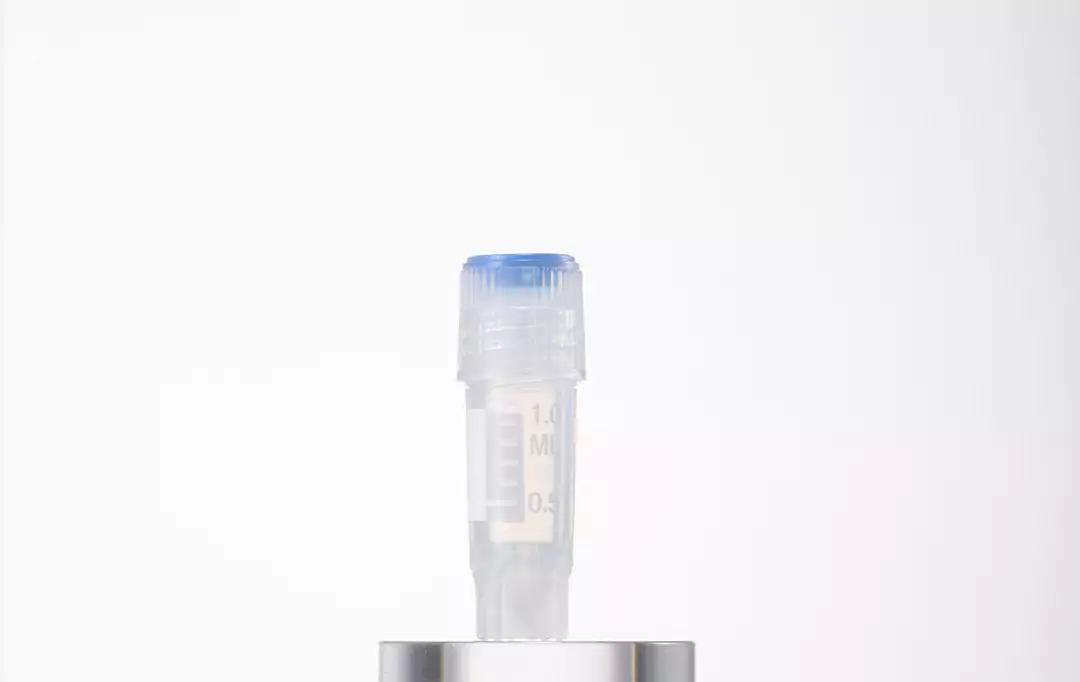

External Thread Cryogenic Tube
External Thread Cryogenic Tube
External Thread Cryogenic Tube
External Thread Cryogenic Tube
External Thread Cryogenic Tube
External Thread Cryogenic Tube
Prev
Next
External Thread Cryogenic Tube
External Thread Cryogenic Tube
External Thread Cryogenic Tube
External Thread Cryogenic Tube
External Thread Cryogenic Tube
External Thread Cryogenic Tube

External Thread Cryogenic Tube

TL011-0008

External thread cryogenic tubes emphasize secure sealing, temperature resilience, and convenient sample management. Their features provide laboratories with a reliable solution for safe, organized, and contamination-free biological sample storage.

  • External screw cap with O-ring ensures leak-proof sealing.

  • Medical-grade PP construction withstands -196°C gas-phase nitrogen storage.

  • Color-coded caps and labeling areas simplify sample identification and tracking.

GET FREE QUOTE

Rich Categories

Comfortable Use

Safety & Accessibility

Durable Build

Details

Applications

Specification

Contact us

Details

Details

External thread cryogenic tubes combine low-temperature resistance, leak-proof sealing, and convenient sample management.

  • Made of medical-grade polypropylene (PP) suitable for cryogenic storage.

  • Tolerates gas-phase liquid nitrogen temperatures down to -196°C.

  • External screw cap with built-in silicone O-ring prevents leakage and contamination.

  • Caps and tubes from the same PP batch ensure uniform thermal expansion and tight sealing.

  • Color-coded caps with embedded small lids enable easy sample identification.

  • Large white labeling area supports clear marking and barcoding.

  • Curved bottom design allows centralized liquid handling and reduces residue.

  • Available in ordinary grade and PCR-grade; PCR-grade is free from DNA, DNase, RNase, and endotoxin.

  • Sterilized by gamma irradiation to maintain sterility and sample safety.

  • Smooth screw threads make capping and uncapping efficient in multi-sample workflows.

  • Compatible with digital sample management systems using barcodes or numeric codes.

These features ensure secure, traceable, and organized storage of biological samples while supporting efficient laboratory workflows. The combination of robust PP construction, leak-proof external threading, and practical identification design enhances reliability during extreme cryogenic storage and handling.

Applications

Applications

  • Long-term storage of biological samples in gas-phase liquid nitrogen.

  • Cryogenic storage for research laboratories, biobanks, and diagnostics.

  • PCR-grade tubes for DNA/RNA-sensitive experiments.

  • Sample organization and tracking using color-coded lids and barcodes.

  • Centralized liquid handling and residue minimization in laboratory workflows.

Step 1
Step 2
Step 3
Step 4

Specification

Specification

Code Volume Cap Base Temp Packaging Graduation Printing
TL011-0008 0.5ml External Thread Self-standing -196℃-120℃ 500pcs/bag,1000pcs/ctn Yes Yes
TL011-0009 1.0ml External Thread Self-standing -196℃-121℃ 500pcs/bag,1000pcs/ctn Yes Yes
TL011-0010 1.5ml External Thread Self-standing -196℃-121℃ 500pcs/bag,1000pcs/ctn Yes Yes
TL011-0011 1.5ml External Thread Round bottom -196℃-121℃ 500pcs/bag,1000pcs/ctn Yes Yes
TL011-0012 1.8ml External Thread Self-standing -196℃-121℃ 500pcs/bag,1000pcs/ctn Yes Yes
TL011-0013 1.5ml External Thread Self-standing -196℃-121℃ 500pcs/bag,1000pcs/ctn Yes Yes
TL011-0014 3.6ml External Thread Round bottom -196℃-121℃ 500pcs/bag,1000pcs/ctn Yes Yes
TL011-0015 3.6ml External Thread Self-standing -196℃-121℃ 500pcs/bag,1000pcs/ctn Yes Yes
TL011-0016 4.5ml External Thread Round bottom -196℃-122℃ 500pcs/bag,1000pcs/ctn Yes Yes
TL011-0017 4.5ml External Thread Self-standing -196℃-123℃ 500pcs/bag,1000pcs/ctn Yes Yes
