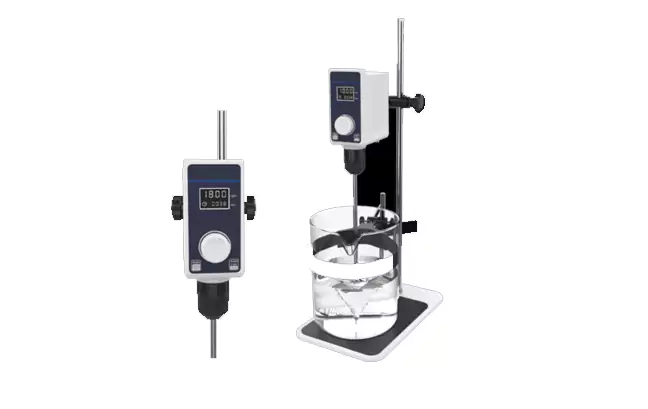

Overhead Stirrer TLOS-5
TLOS-5
The overhead stirrer offers stable torque, adjustable speed, and timing control for versatile laboratory mixing. It ensures consistent performance across different liquid volumes and viscosities.
-
Stable brushed motor for reliable mixing.
-
Adjustable speed and optional timing for experimental flexibility.
-
Supports 5–20 L liquid volumes with 1–10 mm chuck compatibility.
Rich Categories
Comfortable Use
Safety & Accessibility
Durable Build
Details
Details
Trustlab overhead stirrers deliver precise, efficient, and flexible mixing for laboratory liquids.
-
Brushed motor provides stable torque for consistent stirring.
-
Adjustable speed control supports diverse experimental requirements.
-
Optional timing function enables controlled mixing duration.
-
Compatible with drill chucks from 1–10 mm for various impellers.
-
Supports liquid volumes from 5 L to 20 L for small to medium batches.
-
Robust construction ensures long-term reliable operation.
-
Compact design fits easily into different lab setups.
-
Suitable for low- to high-viscosity liquids.
-
Ergonomic layout simplifies handling and workflow integration.
These features enable laboratories to perform accurate mixing with stable performance. The combination of adjustable speed, timing options, and flexible chuck compatibility ensures consistent results. Durable motor construction and wide volume capacity support repeated use in diverse experimental conditions.
Applications
Applications
-
Chemical reaction mixing and homogenization
-
Life science sample preparation
-
Educational laboratory experiments
-
Medium-volume solution mixing
-
High- and low-viscosity liquid processing
Step 1
Step 2
Step 3
Step 4
Specification
Specification
| Model | TLOS-5 | TLOS-10 | TLOS-15S | TLOS-30S |
| Motor | Brushed motor | Brushed motor | Brushed motor | Brushed motor |
| Max Amount Of Stirring | 5L | 10L | 10L | 20L |
| Range Of Rotate Speed | 200-1500rpm | 100-1500rpm | 100-2000rpm | 50-1200rpm |
| Timing | / | / | 1min-24h | 1min-24h |
| Max Torque | 10N.cm | 20N.cm | 15N.cm | 30N.cm |
| Max Viscosity | 5000mPas | 10000mPas | 8000mPas | 16000mPas |
| Drill Chuck Diameter | 1-10mm | 1-10mm | 1-10mm | 1-10mm |
| Power | 30W | 36W | 50W | 60W |
| Voltage | DC24V/2.5A | DC24V/2.5A | DC24V/2.5A | DC24V/2.5A |
