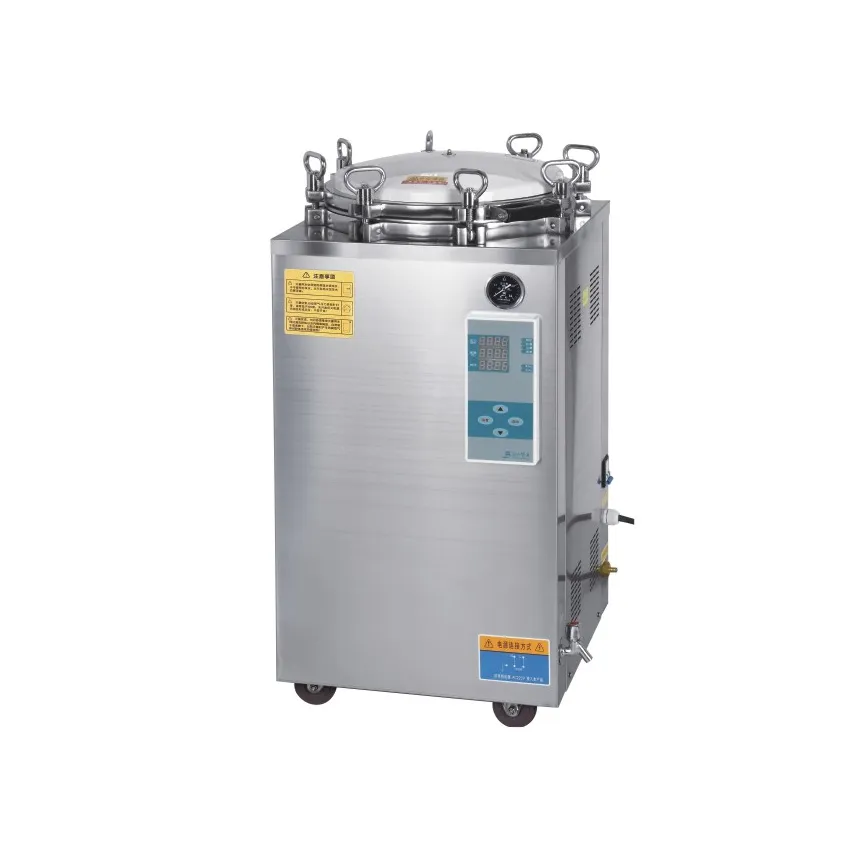

Vertical Pressure Steam Sterilize LED Display Automation
TLLS-35LD/TLLS-50LD/TLLS-75LD/TLLS-100LD/TLLS-120LD/TLLS-150LD
Trustlab Vertical Pressure Steam Sterilizer is built with a durable stainless steel structure and intuitive LED display for reliable, easy-to-use sterilization. Designed for safety and efficiency, it delivers consistent quality you can trust in clinical and laboratory environments.
GET FREE QUOTE
Rich Categories
Comfortable Use
Safety & Accessibility
Durable Build
Details
- Fully stainless steel structure
- LED display of working status, touch type key
- Auto discharge the cool air, and steam discharging automatically after sterilization
- Automatically shut off with beep reminding after sterilization
- Easy to operate, safe and reliable
- With two stainless steel sterilizing baskets
How To Use
The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabrics, glasses, culture media etc.
Specification
| Model | TLLS-35LD | TLLS-50LD | TLLS-75LD | TLLS-100LD | TLLS-120LD | TLLS-150LD |
| Chamber volume | 35L, φ318×450mm | 50L, φ340×550mm | 75L, φ400×600mm | 100L, φ440×650mm | 120L, φ480×660mm | 150L, φ510×740mm |
| Working pressure | 0.22MPa | 0.22MPa | 0.22MPa | 0.22MPa | 0.22MPa | 0.22MPa |
| Working temperature | 134°C | 134°C | 134°C | 134°C | 134°C | 134°C |
| Max. working pressure | 0.23MPa | 0.23MPa | 0.23MPa | 0.23MPa | 0.23MPa | 0.23MPa |
| Heat average | ≤±1°C | ≤±1°C | ≤±1°C | ≤±1°C | ≤±1°C | ≤±1°C |
| Timer range | 0~99min or 0~99hour59min | 0~99min or 0~99hour59min | 0~99min or 0~99hour59min | 0~99min or 0~99hour59min | 0~99min or 0~99hour59min | 0~99min or 0~99hour59min |
| Temperature adjust range | 105~134°C | 105~134°C | 105~134°C | 105~134°C | 105~134°C | 105~134°C |
| Power | 1 × 2.5KW
/AC220V, 50Hz |
2 × 1.5KW
/AC220V, 50Hz |
3 × 1.5KW
/AC220V, 50Hz |
3 × 1.5KW
/AC220V, 50Hz |
3 × 2.0KW
/AC220V, 50Hz |
3 × 2.0KW
/AC220V, 50Hz |
| Overall dimension | 470×450×840mm | 520×500×970mm | 550×530×990mm | 580×560×1060mm | 630×610×1130mm | 660×640×1130mm |
| Transport dimension | 540×540×970mm | 580×580×1090mm | 610×610×1110mm | 640×640×1170mm | 690×690×1240mm | 730×730×1230mm |
| G.W / N.W | 61kg / 46kg | 73kg / 56kg | 87kg / 67kg | 95kg / 73kg | 116kg / 100kg | 130kg / 111kg |
